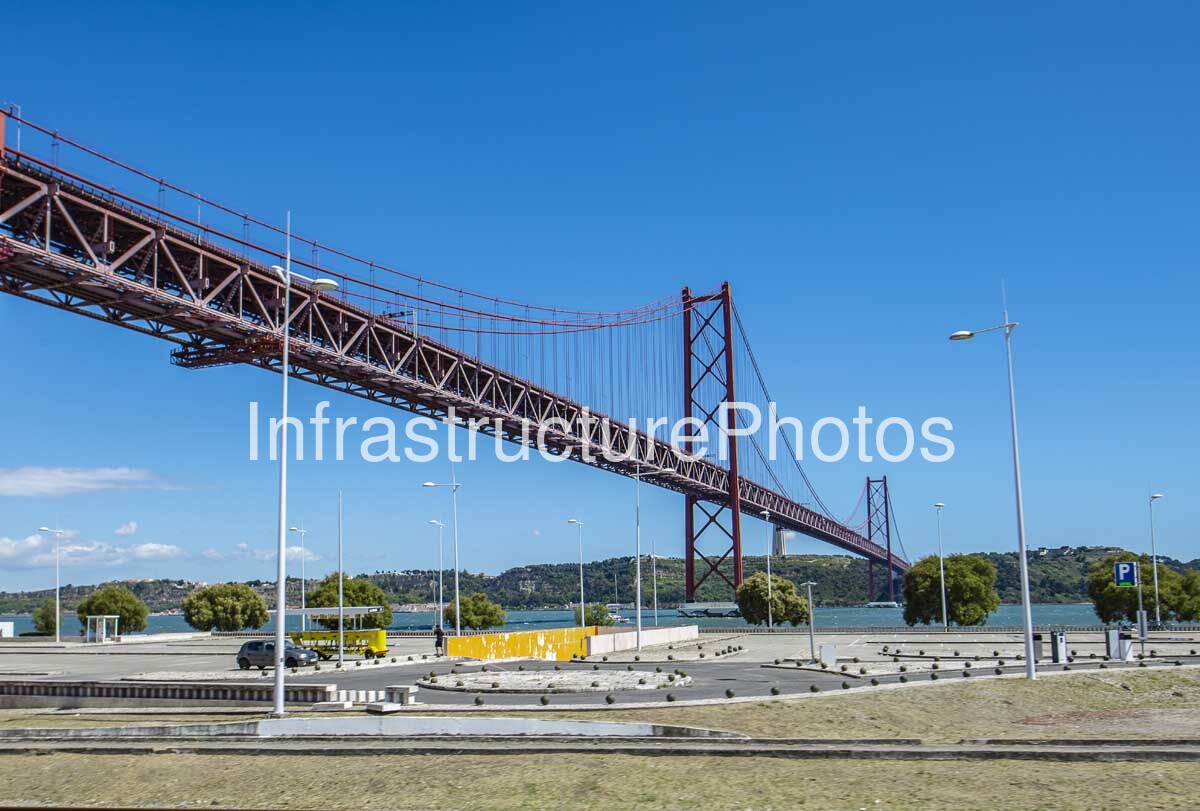

The 25 de Abril Bridge (Ponte 25 de Abril) is one of Lisbon’s most recognisable landmarks and one of Portugal’s defining examples of twentieth-century transport engineering. Spanning the Tagus River between Lisbon and Almada, the enormous red suspension bridge forms a critical connection between the Portuguese capital and the rapidly urbanised southern bank of the river. This photograph captures the bridge from the Lisbon waterfront, presenting its steel towers, suspension cables and deep stiffening truss against the open landscape of the Tagus and the hills of Almada.
The concept of a major crossing over the Tagus at Lisbon dates back to the 19th century. The first recorded proposal was made in 1879 by engineer Miguel Pais, who envisaged a road-and-rail bridge connecting eastern Lisbon with Montijo. Almost a century of proposals and studies followed before the project moved forward at its present location. During the 1950s, detailed investigations intensified, eventually leading to the creation of the Gabinete da Ponte sobre o Tejo and an international public tender for a bridge between Lisbon and Almada. Construction finally began in 1962.
The bridge was completed in less than four years and officially opened to road traffic on 6 August 1966. At its inauguration it was known as the Ponte Salazar, after António de Oliveira Salazar, the head of Portugal’s government at the time. Following the Portuguese Revolution of 25 April 1974, the bridge was renamed the Ponte 25 de Abril, commemorating the date of the revolution. The renaming transformed the bridge from a symbol associated with the previous regime into one of the enduring landmarks of modern democratic Portugal.
The bridge was developed through an international engineering collaboration, with the design associated with the American engineering firm Steinman, Boynton, Gronquist & London, alongside Portuguese engineering institutions including the Gabinete da Ponte sobre o Tejo and the Laboratório Nacional de Engenharia Civil. Its design reflects the sophisticated suspension-bridge technology of the mid-20th century, with two enormous steel towers supporting the main suspension cables and a long, deep steel truss forming the stiffening structure beneath the deck.
Its visual similarity to San Francisco’s Golden Gate Bridge is immediately apparent, particularly in its red steelwork and suspension configuration. However, the 25 de Abril Bridge has its own distinctive structural character. The deep lattice-like stiffening truss is particularly prominent in this photograph, creating a strong horizontal and diagonal rhythm beneath the roadway. The vertical suspension hangers provide a contrasting fine-grained pattern between the main cable and the deck, while the monumental towers rise dramatically above the Tagus.
The scale of the engineering project is considerable. The main towers rise approximately 190 metres above the water, while the bridge provides around 70 metres of navigational clearance, allowing large vessels to access the Port of Lisbon. Construction required approximately 6.6 million cubic metres of excavation, 300,000 cubic metres of concrete and 82,000 tonnes of steel. The northern approach includes a 945-metre concrete viaduct, bringing the bridge and northern approach structure to approximately 3.255 kilometres in combined length.
One of the most important aspects of the original design was its provision for future railway traffic. Although the bridge initially carried road traffic only, the structure had been conceived to accommodate a railway crossing. Growing commuter movements between Lisbon and the southern bank eventually made this capability essential. On 29 July 1999, railway services were introduced across the bridge, accompanied by an expansion of the road deck to three lanes in each direction. The addition of rail transformed the bridge into a major integrated road-and-rail transport corridor, rather than simply a highway crossing.
